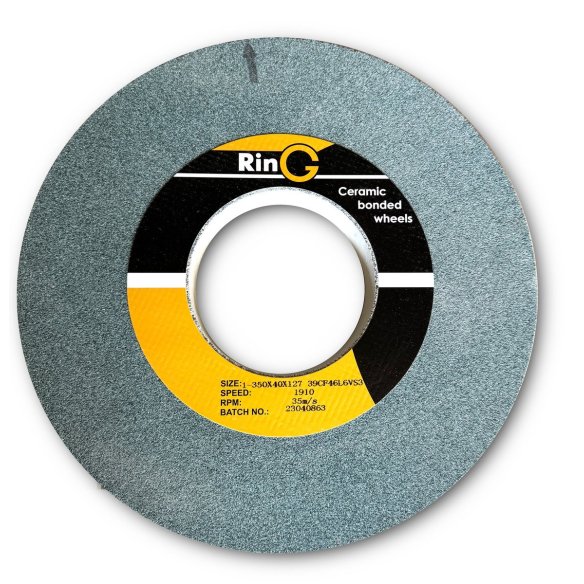

Grinding Wheel on Ceramic Bond 350x40x127 GC F46L 6VS3
This grinding wheel is a specialized tool created for the effective and delicate processing of materials that are sensitive to heat or prone to chipping. Made from green silicon carbide (GC)—an abrasive known for its exceptional hardness and brittleness—this wheel ensures precise and controlled grinding. It is perfectly suited for use on universal grinding machines in industries where surface quality and minimal thermal impact are key.
Key Advantages and Features:
- High-Quality Finish: Due to the properties of the GC abrasive and the soft L hardness, the wheel provides a clean grind without burning or altering the material's structure.
- Effective at High Speeds: The VS3 ceramic bond allows for operation at high speeds, which increases grinding productivity.
- Reduced Load on the Workpiece: The optimal combination of hardness, grit, and porous structure 6 minimizes pressure on brittle materials, preventing chipping and cracking.
- Versatility for Special Materials: The wheel is designed for a wide range of materials, including cast iron, hard alloys, and non-metallic materials, making it an indispensable tool in many fields.
Technical Specifications and Application:
- Type: Flat grinding wheel (Type 01).
- External Diameter (D): 350 mm.
- Width (H): 40 mm.
- Bore Diameter (d): 127 mm.
- Abrasive Material: GC (Green Silicon Carbide).
- Grit: F46 (medium).
- Hardness: L (Soft).
- Structure: 6 (moderately porous).
- Bond: Ceramic (VS3).
- Purpose: Precise grinding of cast iron, hard alloys, glass, marble, and ceramics.
- Application: Universal grinding machines in the tool, medical, and glass industries.
