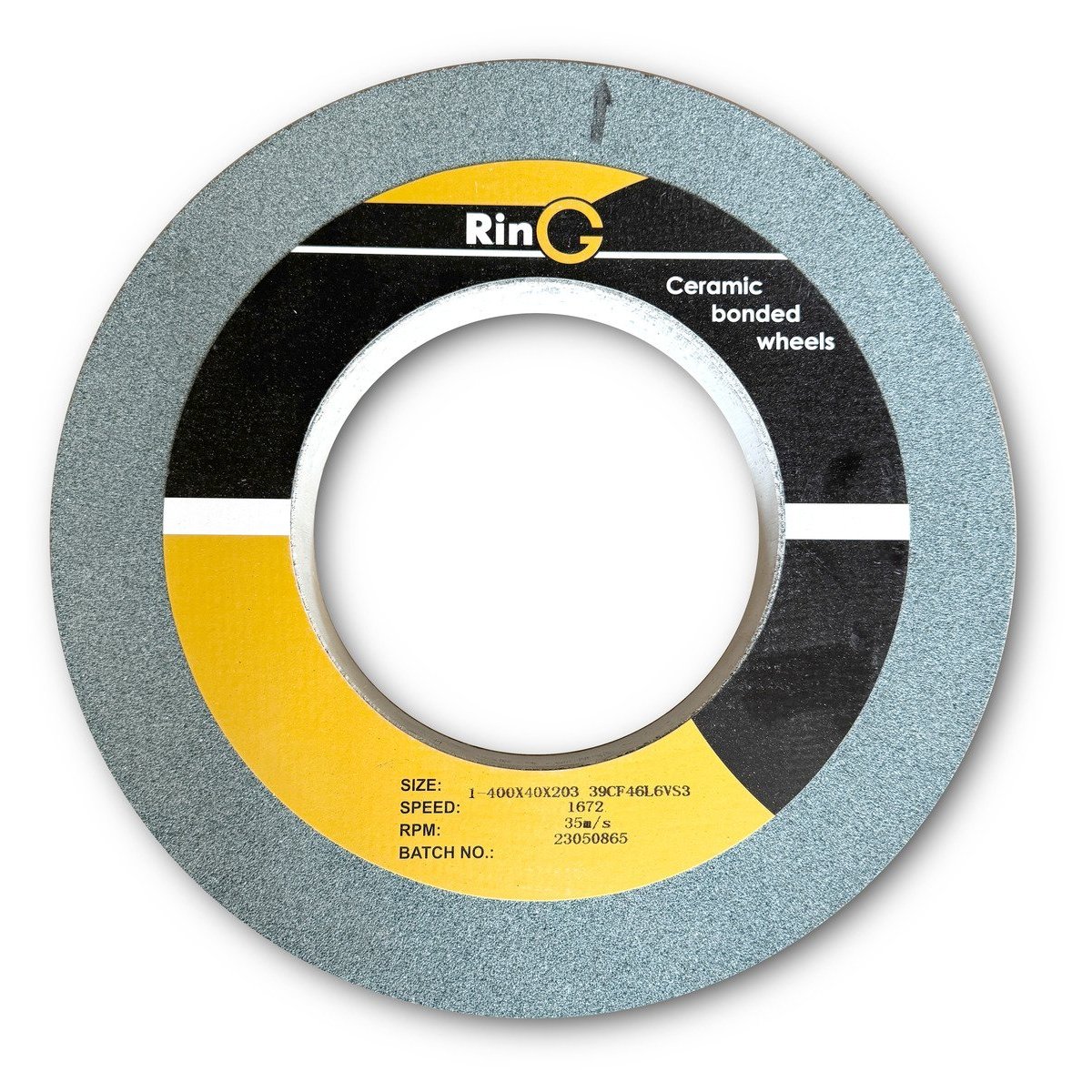

Grinding Wheel on Ceramic Bond 400x40x203 GC F46L 6VS3
This large flat grinding wheel is a specialized tool created for the intensive and precise processing of materials that are sensitive to heat or prone to chipping. Made from silicon carbide (GC), it possesses unique cutting properties that allow it to work effectively with cast iron, technical ceramics, and glass. The optimal combination of characteristics ensures not only high productivity but also a quality result without the risk of damaging the workpiece.
Key Advantages and Features:
- High Productivity: The combination of GC abrasive and soft L hardness ensures a high material removal rate, which significantly speeds up production processes.
- Optimal "Cool" Grinding: The porous structure 6 and the properties of silicon carbide contribute to fast heat dissipation, preventing overheating, burning, and changes in the material's structure.
- Precision for Brittle Materials: The wheel is ideally suited for processing brittle materials, minimizing the risk of forming micro-cracks and chips.
- Long Service Life: Thanks to the durability of the abrasive and the ceramic bond, the wheel has a long service life, which reduces maintenance costs.
Technical Specifications and Application:
- Type: Flat grinding wheel (Type 01).
- External Diameter (D): 400 mm.
- Width (H): 40 mm.
- Bore Diameter (d): 203 mm.
- Abrasive Material: GC (Green Silicon Carbide).
- Grit: F46 (medium).
- Hardness: L (Soft).
- Structure: 6 (moderately porous).
- Bond: Ceramic (VS3).
- Purpose: Grinding of brittle and heat-sensitive materials, cast iron.
- Application: Metallurgy, tool manufacturing, processing of technical ceramics and glass.
